Concentrate thickener is used for dewatering of various beneficiation concentrates, generally between concentration and filtering equipment, for thickening and dewatering.
Structure:
The equipment has simple structure, convenient operation and reliable operation.
The equipment consists of bridge, central transmission and lifting device, distributor, transmission shaft, inclined plate structure, long rake, short rake frame structure, auxiliary rake, etc.
Aplplication:
Thickening and Dewatering treatment of gold, silver, copper, lead and zinc ore, lithium ore, cobalt ore, nickel ore and tin ores etc
Parameter
Parameter:
| Model | Rotating speed(min/r) | Sedimentation area (㎡) | Capacity(t/d) | Lifting height(mm) | Lifting speed(mm/min) | Lifting reducer | Power(kw) | Reducer |
| NZ-6 | 1/3.7 | 28 | 14-62 | 200 | 31.4 | XLED0.75-53-1/289 | 1.1 | WX120-40-Ⅱ |
| NZ-9 | 1-4 | 63.5 | 32-140 | 250 | 31.4 | XLED0.75-53-1/289 | 3 | ZQ350-Ⅳ-4Z |
| NZ-12 | 1/5.26 | 113 | 56-250 | 250 | 31.4 | XLED0.75-53-1/289 | 3 | ZQ400--4Z |
| NZ-20 | 1/14.7 | 314 | 960 | 400 | 100 | 5.2 |

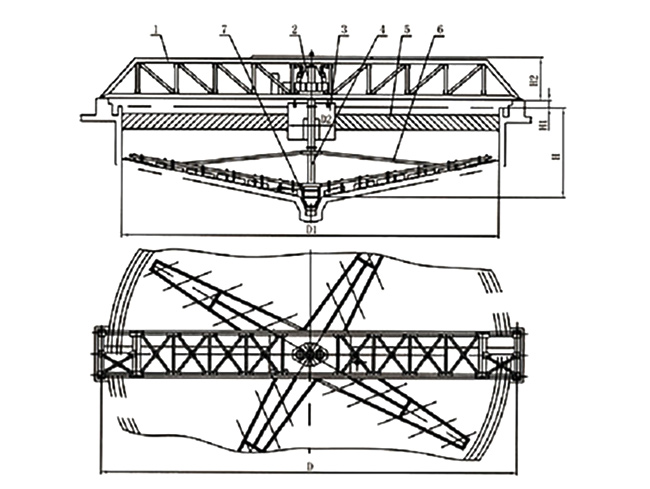

Dimensions:
| Model | D(mm) | D1(mm) | D2(mm) | H(mm) | H1(mm) | H2(mm) |
| NZ-6 | 6000 | 700 | 2956 | 240 | 800 | |
| NZ-9 | 9000 | 1200 | 3000 | 280 | 1000 | |
| NZ-12 | 12000 | 1500 | 3500 | 450 | 1475 | |
| NZ-20 | 22500 | 20000 | 3000 | 4470 | 150 | 2500 |
