Structure

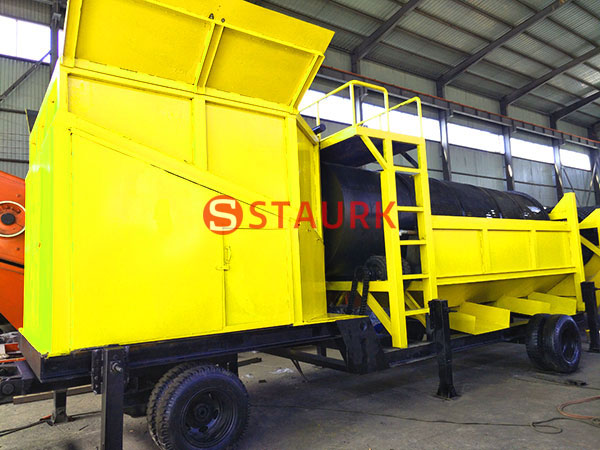

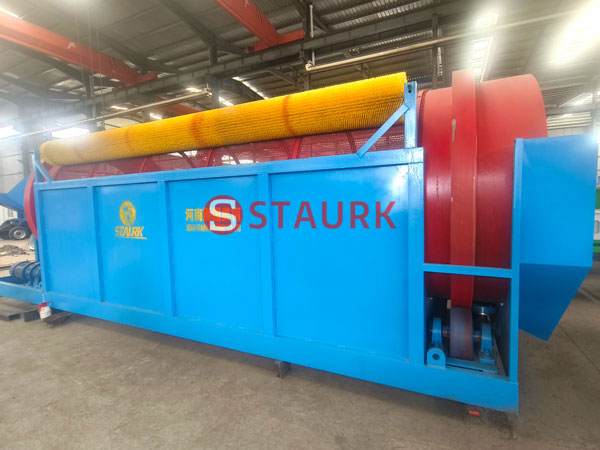

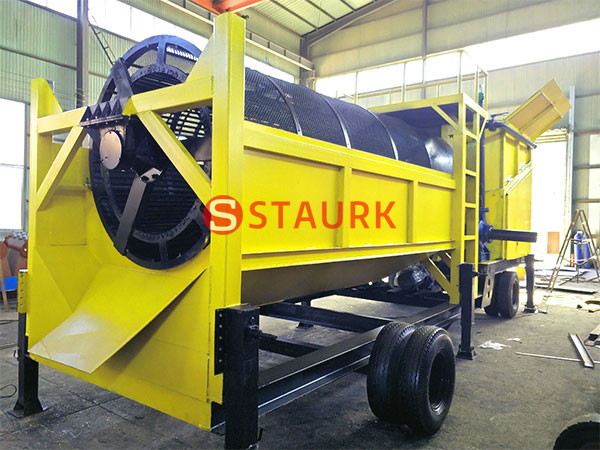

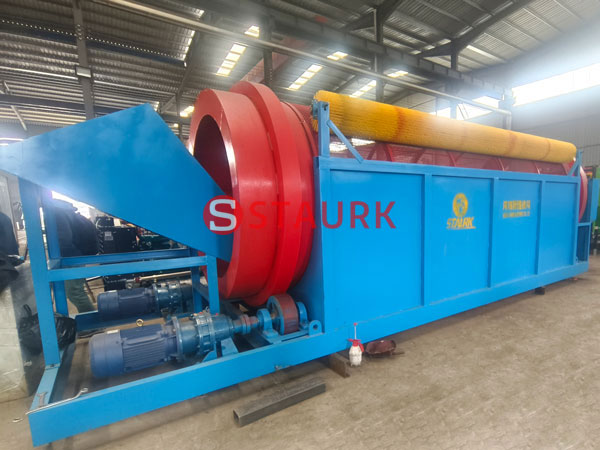

Mobile sand soil trommel screen mainly consists of tyres, transmission system, cylinder, frame, protective cover, brush, inlet and outlet etc.
Application area
Widely used in mining, sand and gravel, environmental protection, construction, power plants, building materials, metallurgy and other fields.
Features
1. High recovery rate and not easy to be blocked: trommel screen is shaftless design, greatly reducing material blocked;
2. Stable operation & easy maintenance: use new durable materials, operate easily
3. Widly used: in various materials such as construction waste, mines, sand and soil, coal gangue, refractory materials, coal, fertilizers, etc;
4. High energy efficiency and low noise: low operating energy consumption, low noise and vibration during operation.
Parameter
| Item | Model | Spec | Feeding size(mm) | Capacity(tph) | Inclination angle | Power(kw) | Weight(kg) | Dimension(mm) |
| 1 | YGT1030 | 1000X3000 | ≤50 | 30-60 | 6 | 3kw | 1300 | 4500X1360X2340 |
| 2 | YG1040 | 1000X4000 | ≤50 | 30-60 | 6 | 3kw | 1500 | 5500X1460X2340 |
| 3 | YGT1230 | 1200X3000 | ≤50 | 30-100 | 6 | 5.5kw | 1600 | 4500X1580X2480 |
| 4 | YGT1240 | 1200X4000 | ≤50 | 30-100 | 6 | 5.5kw | 1900 | 5500X1680X2480 |
| 5 | YGT1540 | 1500x4000 | ≤50 | 30-150 | 6 | 11kw | 2500 | 5800X2100X4400 |
| 6 | YGT1560 | 1500X600 | ≤50 | 30-150 | 6 | 11kw | 2700 | 6800X2100X4400 |
| 7 | YGT1860 | 1800X6000 | ≤50 | 30-200 | 6 | 15kw | 5010 | 8490X2400X4680 |
| 8 | YGT2160 | 2100X6000 | ≤50 | 30-200 | 6 | 18.5kw | 6360 | 8490X2760X5000 |
| 9 | YGT2460 | 2400X6000 | ≤100 | 30-250 | 6 | 18.5kw | 7200 | 8490X3020X5200 |
| 10 | YGT2480 | 2400X8000 | ≤100 | 30-250 | 6 | 22kw | 7600 | 8700X2860X5700 |
| 11 | YGT3060 | 3000X6000 | ≤100 | 30-300 | 6 | 30kw | 8800 | 8500X3660X5800 |
| 12 | YGT3080 | 3000X8000 | ≤100 | 30-300 | 6 | 30kw | 9400 | 880003660X5800 |
| 13 | WGT1560 | 1500X600 | ≤100 | 30-150 | 5-10 | 7.5kw | 2700 | 6800X2100X4400 |
| 14 | WGT1860 | 1800X6000 | ≤100 | 30-200 | 5-10 | 11kw | 5010 | 8490X2400X4680 |
| 15 | WGT2160 | 2100X6000 | ≤100 | 30-250 | 5-10 | 15kw | 6360 | 8490X2760X5000 |
| 16 | WGT2480 | 2400X8000 | ≤100 | 30-300 | 5-10 | 22kw | 7600 | 8700X2860X5700 |
| 17 | WGT3080 | 3000X8000 | ≤100 | 30-400 | 5-10 | 37kw | 9400 | 8800X3660X5800 |
